450W (3500±6% RPM) Drive Motor, PMDC Brushed Motor ZD109AZ3

Application: electric material handling equipment

450W (3500±6% RPM) Drive Motor, PMDC Brushed Motor ZD109AZ3
450W (3500±6% RPM) Drive Motor, PMDC Brushed Motor ZD109AZ3
450W (3500±6% RPM) Drive Motor, PMDC Brushed Motor ZD109AZ3
Technical Specifications
Rated Power (W) 450
Rated Voltage(V) 24
No-load Revolution (RPM) 3500±6%
No-load Current (A) ≤3.5
Rated Current (A) ≤25.0
Rated Torque(N•m) 1.53
Rated Revolution (RPM) 2800±6%
Working Cycle (min.) S2-60
Insulation Class F
Gear Ratio 7.18:1
Protection Level IP44
Insulation Resistance >20 MΩ

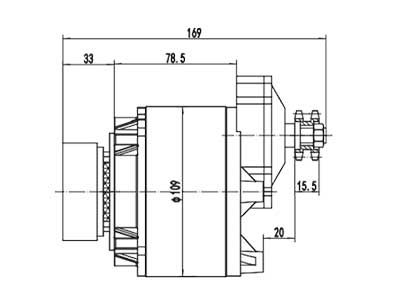

Length (mm) 169

Note: customization of PMDC brushed motor is available upon your product requests and working conditions.
