350W Lifting Motor, PMDC Brushed Motor ZD109A1

Application: electric material handling equipment including cranes, industrial trucks, forklifts, AGVs, etc.

200W (3200±8% RPM)  Power Steering Motor, PMDC Brushed Motor ZD089AX
200W (3200±8% RPM)  Power Steering Motor, PMDC Brushed Motor ZD089AX
200W (3200±8% RPM)  Power Steering Motor, PMDC Brushed Motor ZD089AX
Technical Specifications
Rated Power (W) 350
Rated Voltage(V) 24
No-load Revolution (RPM) 3400±6%
No-load Current (A) ≤3.5
Rated Current (A) ≤19.0
Rated Torque(N•m) 1.28
Rated Revolution (RPM) 2600±6%
Working Cycle (min.) S2-60
Insulation Class F
Protection Level IP44
Insulation Resistance >20 MΩ

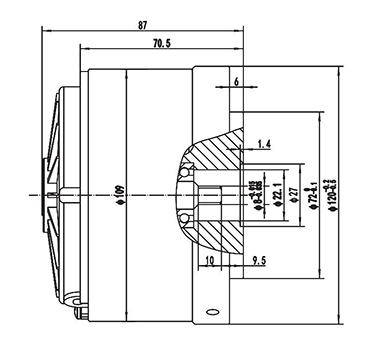

Length (mm) 87

Note: UNITE MOTOR can customize any PMDC brushed lifting motors according to your requirements and working conditions.
