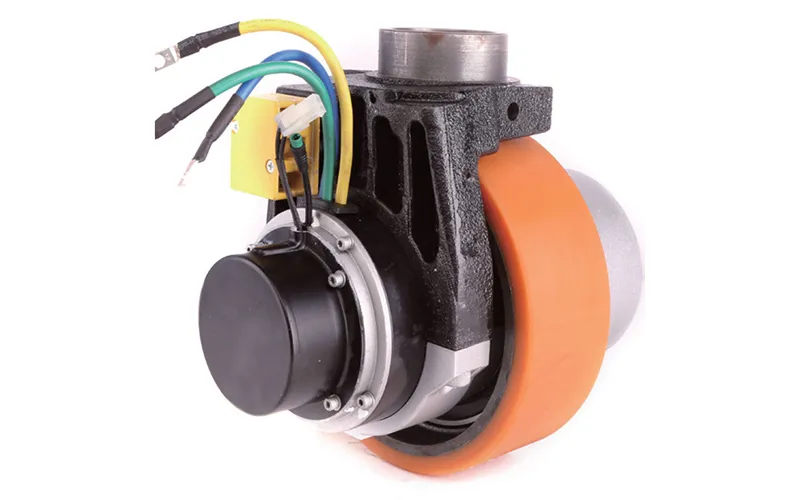

1200W Drive Motor Assembly, PMDC Brushless Motor TF110BH1-JY120X.32
1200W Drive Motor Assembly, PMDC Brushless Motor TF110BH1-JY120X.32
Features

Designed for strong, consistent output, this drive motor assembly combines high load capacity with a compact, economical structure. Its refined build ensures smooth operation and dependable performance in demanding material-handling environments.

Applications

It is suitable for a wide range of electric material-handling machines, including electric pallet trucks and electric pallet jacks, delivering stable and efficient drive support.

Inquiry
Technical Specifications
Braking Mode EM Brake/8N.m/48V
Matched Gear Ratio 32:1
Matched Motor TF110B/BLDC Motor
Rated Voltage (V) 48
Rated Power (W) 1200
Rated Torque (N.m) 3.5
Rated Current (A) ≤30
Rated Revolution (RPM) 3250
No-load Current (A) ≤5
No-load Revolution (RPM) 3750
Rated Efficiency (%) ≥78
Working Cycle (min.) S2-45
Insulation Class F
Protection Level IP44
Motor Length 254
