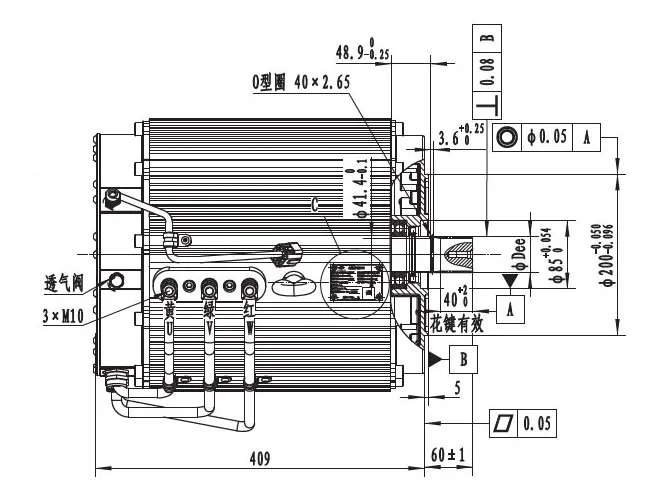

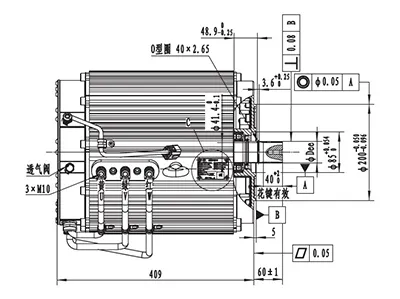

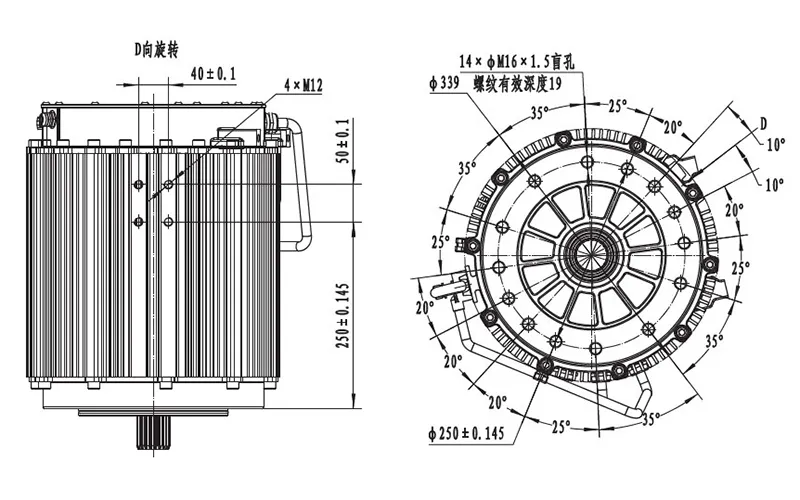

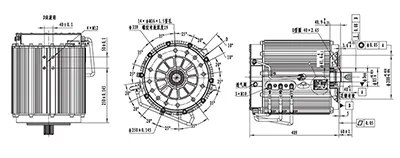

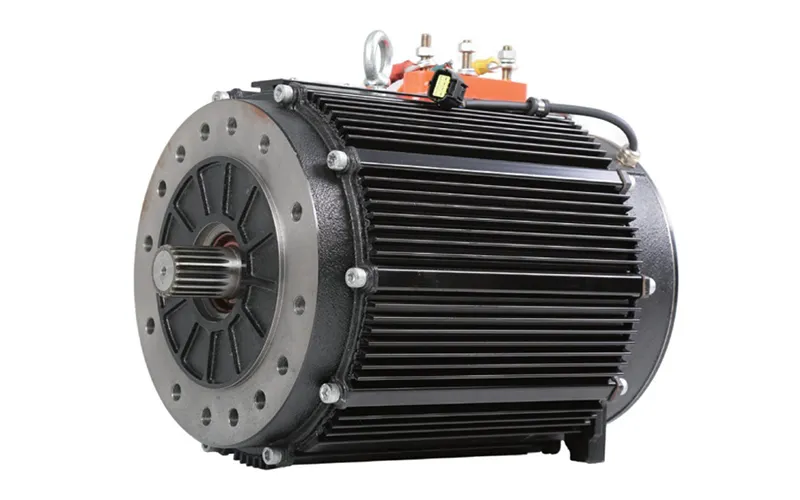

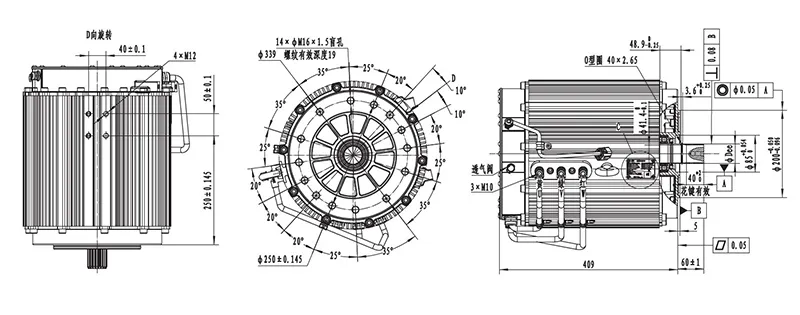

35000W Traction Motor, PMDC Brushless Motor TR300A

Application: electric forklift, electric vehicle, elevators, etc.

35000W Traction Motor, PMDC Brushless Motor TR300A
35000W Traction Motor, PMDC Brushless Motor TR300A
Features

This traction motor delivers strong overall performance, offering high load capacity within a compact structural design. Its engineering ensures stable, efficient power output to meet the demands of intensive forklift operation.

Applications

It is suitable for various types of electric counterbalance forklifts, providing consistent and reliable traction support across different working conditions.

Inquiry
Technical Specifications
Matched Motor PMSM Motor
Rated Voltage (V) 96
Rated Power (W) 35000
Peak Power (W) 42000
Rated Torque (N.m) 66.85
Peak Torque (N.m) 380
Rated Revolution (RPM) 5000
Peak Revolution (RPM) 5500
Rated Efficiency (%) ≥95
Working Cycle (min.) S2-60
Insulation Class H
Protection Level IP55
