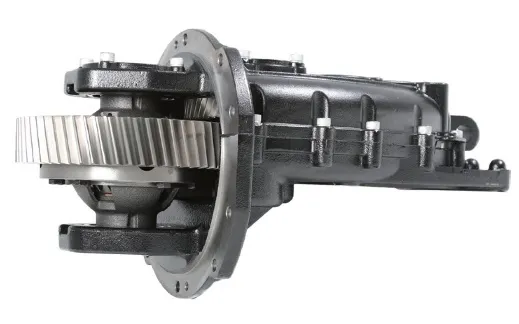

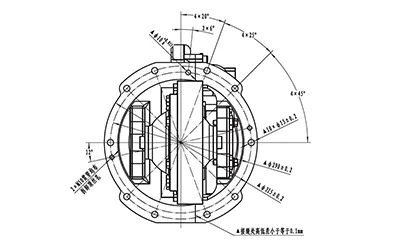

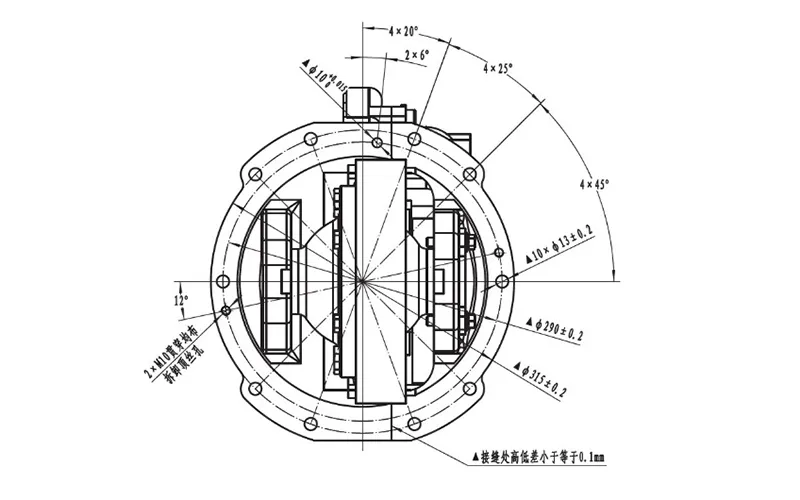

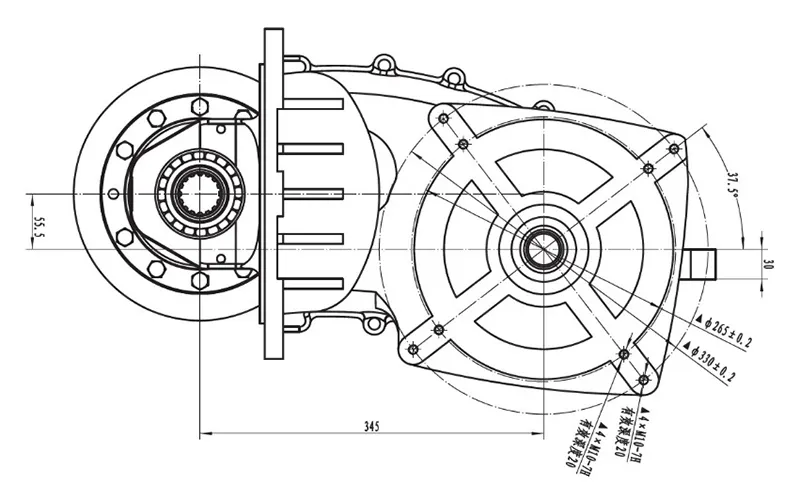

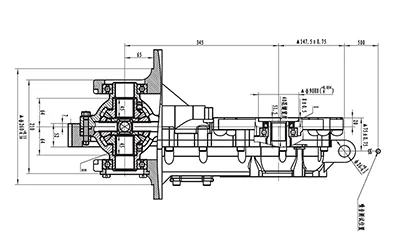

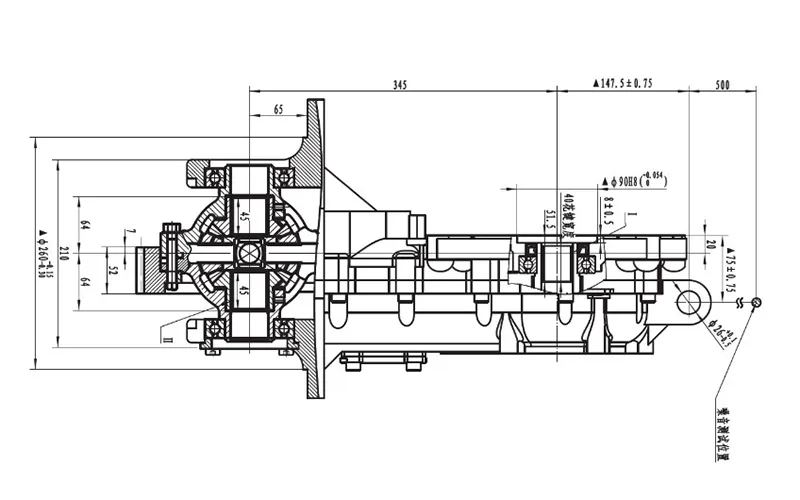

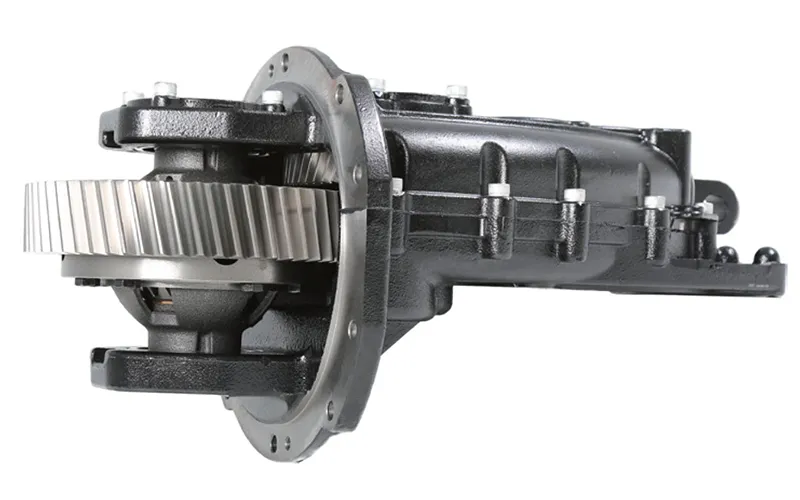

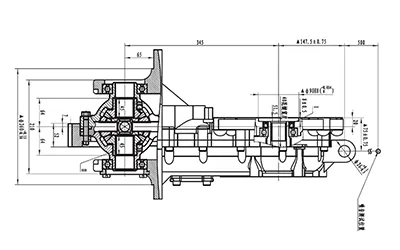

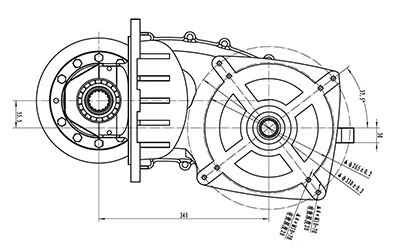

Gear Reducer JS35YA

Gear Reducer JS35YA
Gear Reducer JS35YA
Gear Reducer JS35YA
Gear Reducer JS35YA
Features

The gear reducer offers high load capacity within a compact structural design. Its configuration supports smooth, efficient power transmission suitable for everyday forklift operation.

Applications

It is suitable for various electric counterbalance forklifts, providing reliable torque reduction and stable performance across different working conditions.

Inquiry
Technical Specifications
Model No. JS35YA
Matched Peak Power (KW) 28
Matched Peak Torque (N.m) 350
Matched Peak Efficiency 92%
Max. Revolution (RPM) 5500
Noise (dB) ≤72
Optional Gear Ratio 23:1 / 29:1 / 32:1 / 36:1
