Rear Drive Axle Assembly HQ10 Series

This product has been discontinued and removed from our shelves.

Rear Drive Axle Assembly HQ10 Series
Technical Specifications
Braking Mode Mechanical Hub Brake
Braking Diameter (mm) 110/130
Structure Split Semi-floating
Adaptive Gearbox Model JS10
Gear Ratio 7/1; 13/1; 26/1
Rated Output Torque (N·m) 140
Max. Output Torque (N·m) 210
Adaptive Motor TF102AH
Rated Voltage (V) 24/36/48
Rated Power (W) 350/500/750/1000
Rated Torque (N·m) 1.2/1.7/2.3/3.2
Rated Current (A) 9.5/13.5/21/28
No-load Current (A) ≤2.5 / ≤3 / ≤3.5 / ≤4
No-load Revolution (RPM) 3350/3350/3250/3250
Rated Revolution (RPM) 2800/2800/3000/3000
Max. Torque (N·m) 6/8.5/13/18
Max. Power (W) 700/1000/1500/2000
Rated Efficiency (%) ≥75
Working Cycle (min.) S1
Insulation Class F
Protection Level IP33

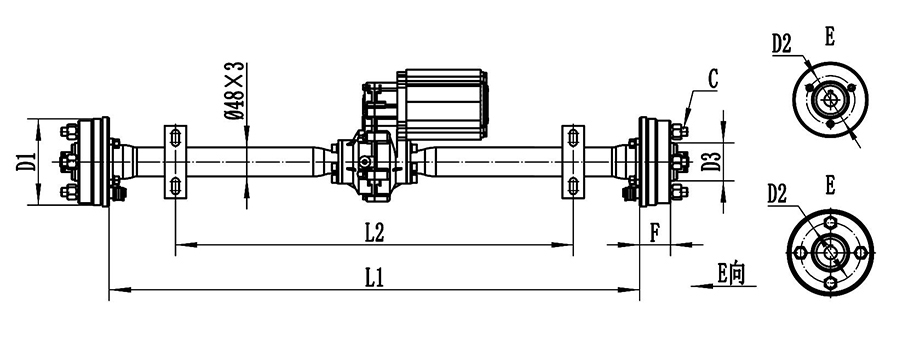

Dimensions
Rear Drive Axle Assembly HQ10 Series
Model No. HQ10 HQ10 HQ10
L1 Size (mm) 580 780 880
L2 Size (mm) 340 535 560

Remark: The size of L1 and L2 can be customized per your special requirements.
