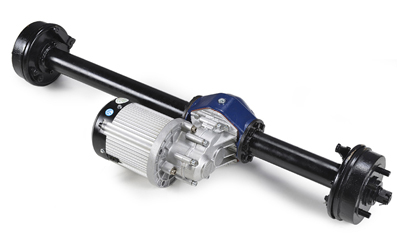

Rear Drive Axle Assembly HQ16 Series

Rear Drive Transaxle System

Rear Drive Axle Assembly HQ16 Series
Rear Drive Axle Assembly HQ16 Series

The rear drive axle assembly has excellent performance, with strong loading and braking capacities. Equipped with rear drive axle assembly, vehicles will be steered more smoothly, meaning that the value of your spending will be maximized. The rear drive axle assembly is suitable for all kinds of motor driven vehicles and equipment.

Inquiry
Technical Specifications
Model No. HQ16

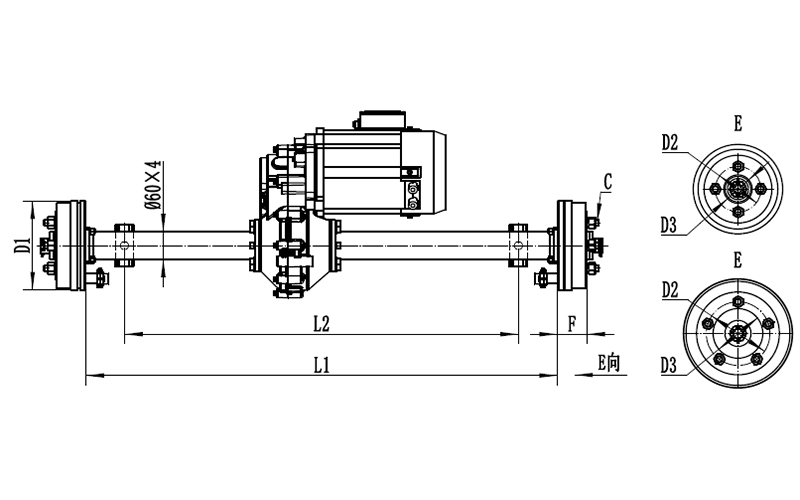

L1 Size (mm) 690-1070
L2 Size (mm) 500-840
Braking Mode Mechanical Drum Brake
Braking Diameter (mm) 160/180/200/220
Structure Type Split; Half-floating
Matched Reducer Model JS16B
Gear Ratio 6:1; 8:1; 9:1; 10:1; 13:1; 15:1
Rated Output Torque (N.m) 800
Max. Output Torque (N.m) 1200
Matched BLDC Motor TZ155B
Rated Voltage (V) 60/72
Rated Power (W) 3700/4500/5500/7500
Rated Torque (N.m) 11/13/18/24
Rated Current (A) 77/94/88/120
Rated Revolution (RPM) 3300/3300/3000/3000
Max. Torque (N.m) 54/65/88/120
Max. Output Power (W) 7500/9000/11000/15000
Rated Efficiency (%) ≥90
Working Cycle (min.) S9
Insulation Class H
Protection Level IP55
Remark The size of L1 and L2 can be customized based on your special requirements.
