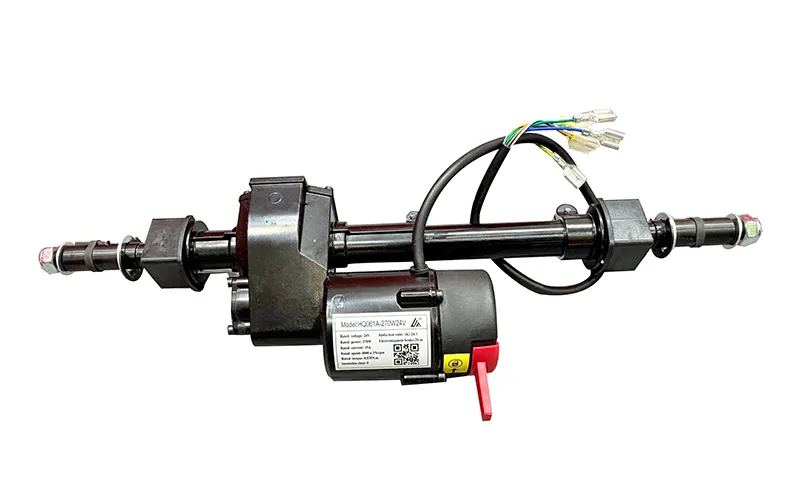

Rear Drive Axle Assembly HQ061A Series
Rear Drive Axle Assembly HQ061A Series
Features

The rear drive axle assembly offers excellent overall performance, combining a high loading capacity with a compact and easy-to-transport design. Its stable structure ensures smooth, reliable operation across a variety of working conditions.

Applications

Suitable for many indoor and outdoor electric vehicles, including powered mobility scooters, children’s electric ATVs, and kids’ electric go-karts, providing steady and efficient drive support.

Inquiry
Technical Specifications
Model No. HQ061A

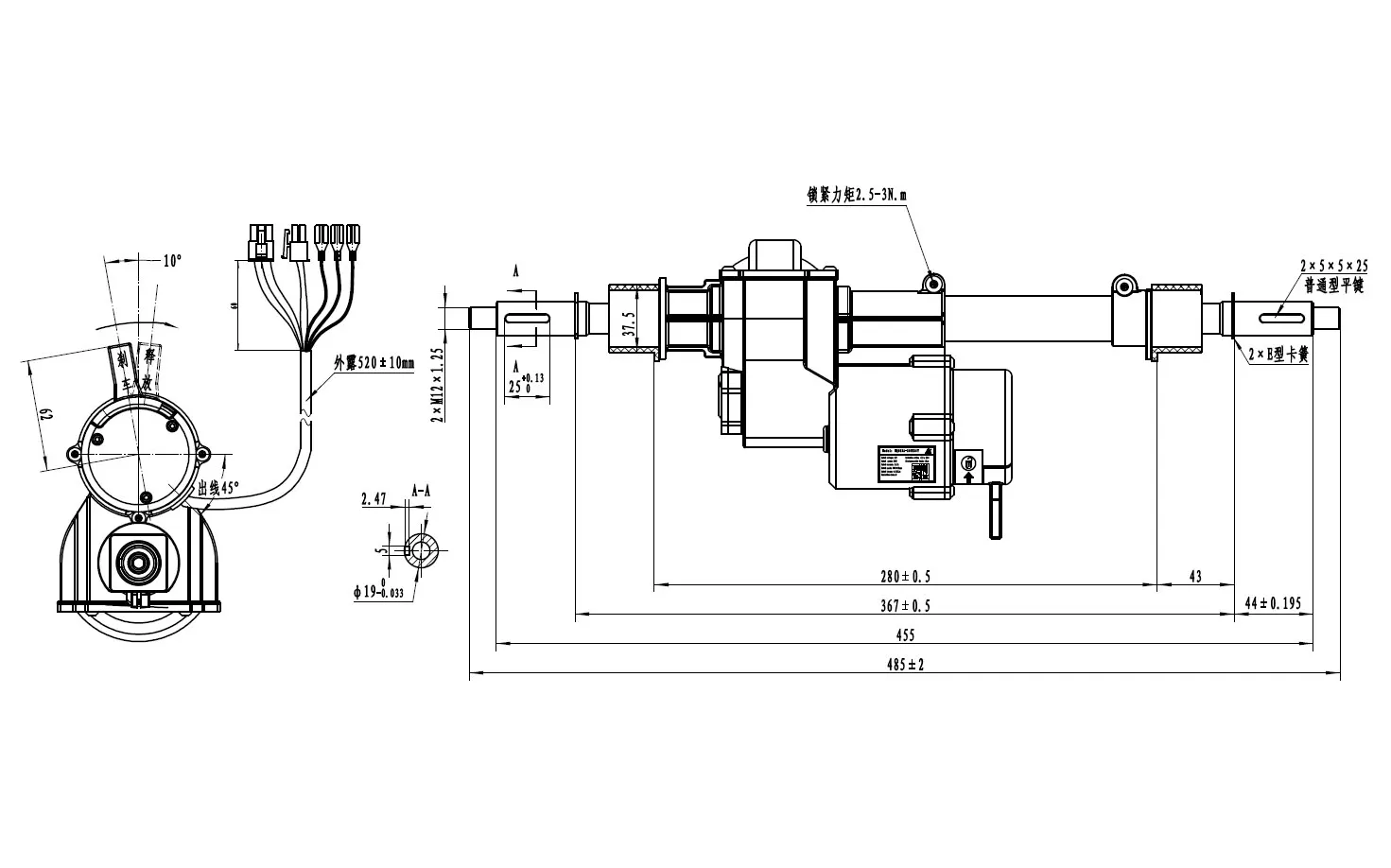

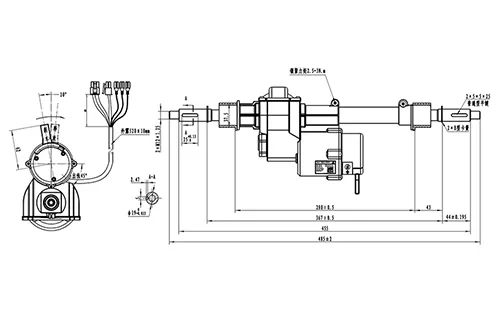

L1 Size (mm) 485
L2 Size (mm) 367
Braking Mode EM Brake/2N.m/24V
Matched Gear Ratio 24:1(8inch tire) / 28:1(10inch tire)
Matched Motor TF061A/BLDC Motor
Rated Voltage (V) 24
Rated Power (W) 270
Rated Torque (N.m) 0.385
Rated Current (A) 11.2
Rated Revolution (RPM) 5000
No-load Current (A) ≤1.2
No-load Revolution (RPM) 5500
Rated Efficiency (%) ≥80
Max. Torque by Gearbox Reduction (N.m) 9.24
Working Cycle (min.) S2-40
Insulation Class F
Protection Level IP54
Remark The size of L1 and L2 can be customized per your special requirements.
