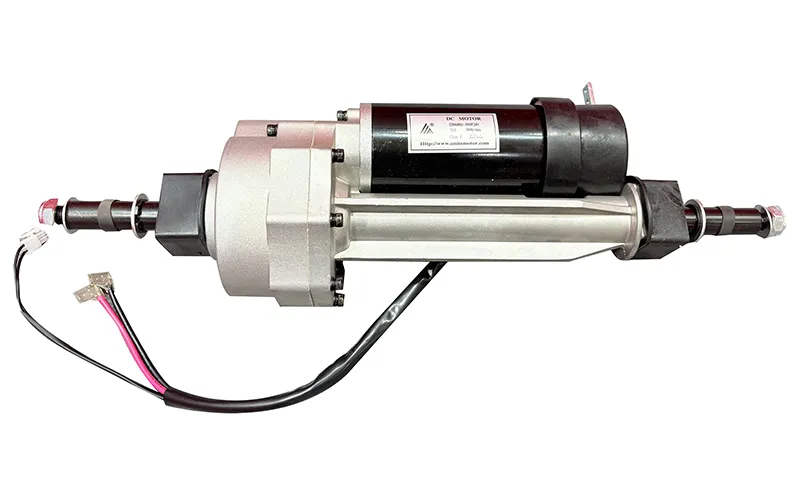

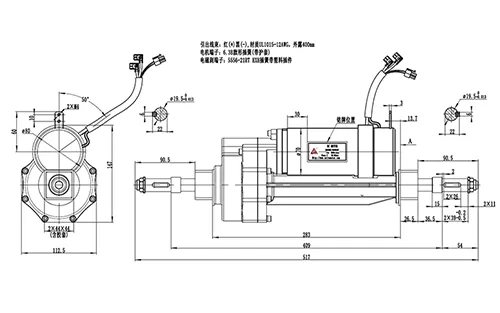

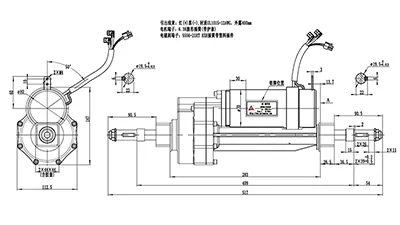

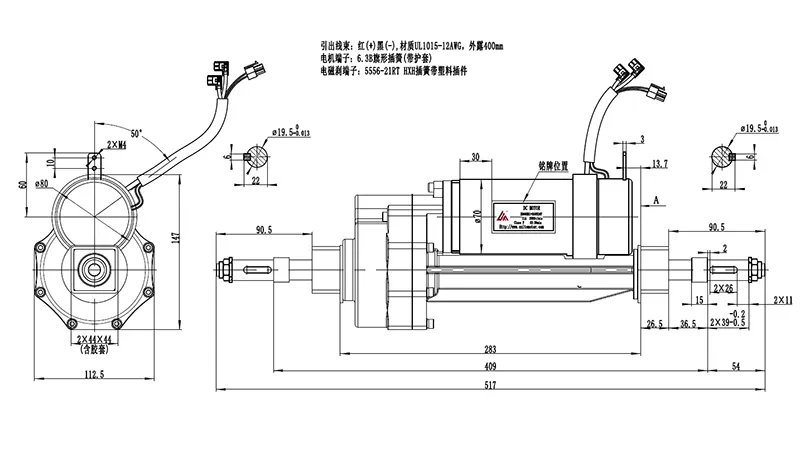

Rear Drive Axle Assembly HQ068B1 Series

Rear Drive Transaxle System

Rear Drive Axle Assembly HQ068B1 Series
Rear Drive Axle Assembly HQ068B1 Series
Features

Delivers strong load capacity with a compact, portable design, ensuring reliable and consistent performance in daily operation.

Applications

Suitable for a wide range of indoor and outdoor electric vehicles, including powered mobility scooters, children’s electric ATVs, and kids’ electric go-karts.

Inquiry
Technical Specifications
Model No. HQ068B1
L1 Size (mm) 517
L2 Size (mm) 409
Braking Mode EM Brake
Matched Gear Ratio 18:1
Matched Motor ZD068B1/PMDC Brushed Motor
Rated Voltage (V) 24
Rated Power (W) 350
Rated Torque (N.m) 1.08
Rated Current (A) ≤20.5
No-load Current (A) ≤2
No-load Revolution (RPM) 3900
Rated Revolution (RPM) 3100
Max. Torque by gearbox reduction (N.m) 19.1
Rated Efficiency (%) ≥72
Working Cycle (min.) S2-40
Insulation Class F
Protection Level IP44
Remark The size of L1 and L2 can be customized per your special requirements.
