Rear Drive Axle Assembly HQ12D Series

This product has been discontinued and removed from our shelves.

Rear Drive Axle Assembly HQ12D Series
Technical Specifications
Braking Mode Disc Brake
Braking Diameter (mm) 160/180
Structure Split Semi-floating
Adaptive Gearbox Model JS12F/JS12D
Gear Ratio 10/1; 22/1
Rated Output Torque (N·m) 200
Max. Output Torque (N·m) 300
Adaptive Motor TF120AHF
Rated Voltage (V) 24/36/48/60
Rated Power (W) 350/500/650/750
Rated Torque (N·m) 1.1/1.7/2.2/2.6
Rated Current (A) 9.5/13.5/15/17
No-load Current (A) ≤2.5 / ≤3 / ≤3.5 / ≤4
No-load Revolution (RPM) 3250/3150/3150/3050
Rated Revolution (RPM) 2900/2800/2800/2700
Max. Torque (N·m) 6.5/10/13/18
Max. Power (W) 700/1000/1300/1500
Rated Efficiency (%) ≥75
Working Cycle (min.) S1
Insulation Class F
Protection Level IP33

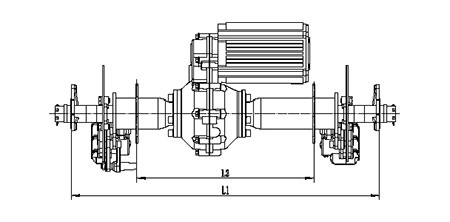

Dimensions
Rear Drive Axle Assembly HQ12D Series
Model No. HQ12D
L1 Size (mm) 590/610/730/840/900
L2 Size (mm) 340/410/530/640/700

Remark: The size of L1 and L2 can be customized per your special requirements.
