  • Rear Drive Axle Assembly HQ14D Series

Rear Drive Axle Assembly HQ14D Series

This product has been discontinued and removed from our shelves.

Rear Drive Axle Assembly HQ14D Series
Technical Specifications
Braking Mode Disc Brake
Braking Diameter (mm) 160/180/200
Structure Split Semi-floating
Adaptive Gearbox Model JS14BA
Gear Ratio 8/1; 10/1; 12/1; 15/1; 19/1
Rated Output Torque (N·m) 500
Max. Output Torque (N·m) 800
Adaptive Motor TF133AH TF133BHF
Rated Voltage (V) 48/60/72 48/60/72
Rated Power (W) 1200/1350/1500/1800/2200 1000/1200
Rated Torque (N·m) 3.1/3.5/4.1/4.5/4.6 2.8/3.2
Rated Current (A) 33/37/41/40/48 23/26
No-load Current (A) ≤6 / ≤6.5 / ≤7/ ≤7.5/≤8 ≤5/≤6
No-load Revolution (RPM) 4800/4100/3800/4300/5300 3600/3900
Rated Revolution (RPM) 4500/3700/3500/4000/5000 3300/3600
Max. Torque (N·m) 18/21/25/28/30 18/21
Max. Power (W) 2500/2800/3200/3800/4500 2000/2500
Rated Efficiency (%) ≥75 ≥75
Working Cycle (min.) S1 S1
Insulation Class F F
Protection Level IP33 IP33

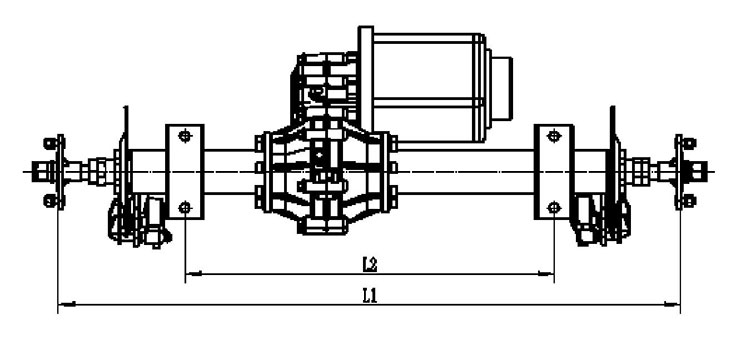

Dimensions
Rear Drive Axle Assembly HQ14D Series
Model No. HQ14D
L1 Size (mm) 660/750/830/850/950/1030
L2 Size (mm) 410/450/530/550/650/730

Remark: The size of L1 and L2 can be customized per your special requirements.
