Rear Drive Axle Assembly HQ14Y Series
Rear Drive Axle Assembly HQ14Y Series

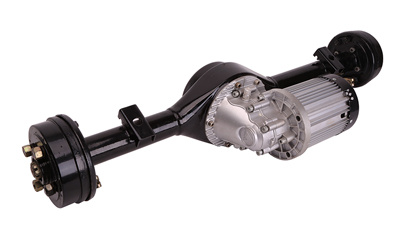

The rear drive axle assembly features excellent performance, with strong loading and braking capacities. Equipped with rear drive axle, vehicles will be steered more smoothly and the value of your spending will be maximized. It’s suitable for all kinds of motor driven vehicles and equipment.

Inquiry
Technical Specifications
Model No. HQ14Y

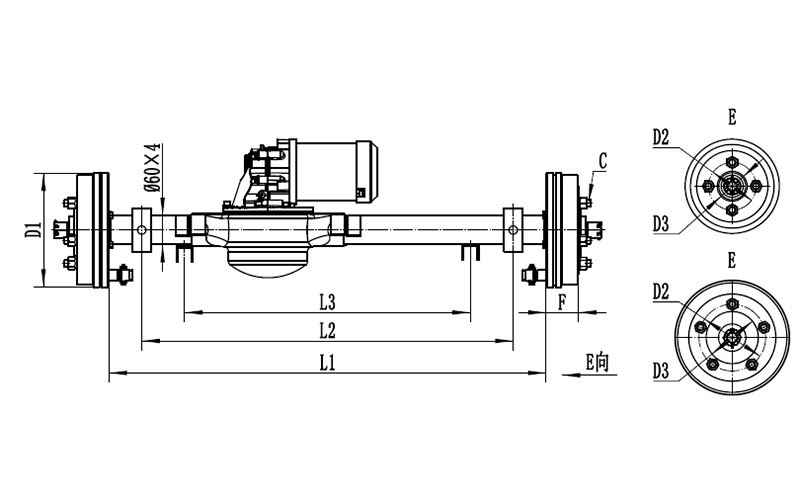

L1 Size (mm) 690/730/830/920/1070
L2 Size (mm) 500/600/710/780/840
Braking Mode Mechanical Drum Brake
Braking Diameter (mm) 160/180/200/220
Structure Type Split; Half-floating
Matched Reducer Model JS14BAY
Gear Ratio 8:1; 10:1; 12:1; 15:1; 19:1
Rated Output Torque (N.m) 500
Max. Output Torque (N.m) 800
Matched BLDC Motor TF133AH TF133BHF
Rated Voltage (V) 48/60/72 48/60/72
Rated Power (W) 1200/1350/1500/1800/2200 1000/1200
Rated Torque (N.m) 3.1/3.5/4.1/5.3/5.8 2.8/3.2
Rated Current (A) 33/37/41/40/48 23/26
No-load Current (A) ≤6 / ≤6.5 / ≤7/ ≤7.5/≤8 ≤5/≤6
No-load Revolution (RPM) 4800/4100/3800/4300/5300 3600/3900
Rated Revolution (RPM) 4500/3700/3500/4000/5000 3300/3600
Max. Torque (N.m) 18/21/25/28/30 18/21
Max. Output Power (W) 2500/2800/3200/3800/4500 2000/2500
Rated Efficiency (%) ≥75 ≥75
Working Cycle (min.) S1 S1
Insulation Class F F
Protection Level IP33 IP33
Remark The size of L1 and L2 can be customized based on your special requirements.
