250W (2000 RPM) Drive Motor, PMDC Brushed Motor ZD101AZ3

Application: mobility equipment, including power wheelchair, motorized scooter, etc.

250W (2000 RPM) Drive Motor, PMDC Brushed Motor ZD101AZ3
250W (2000 RPM) Drive Motor, PMDC Brushed Motor ZD101AZ3
250W (2000 RPM) Drive Motor, PMDC Brushed Motor ZD101AZ3
250W (2000 RPM) Drive Motor, PMDC Brushed Motor ZD101AZ3
Technical Specifications
Rated Power (W) 250 250
Rated Voltage(V) 24 36
No-load Current(A) ≤1.5 ≤1.2
No-load Revolution (RPM) 2000 2000
Rated Torque(N•m) 1.18 1.18
Rated Revolution (RPM) 1700 1700
Rated Current(A) ≤14.0 ≤8.9
Rated Efficiency (%) ≥74 ≥78
Working Cycle (min.) S2-60 S2-60
Insulation Class E E
Protection Level IP44 IP44
Gear Ratio 19.25 19.25

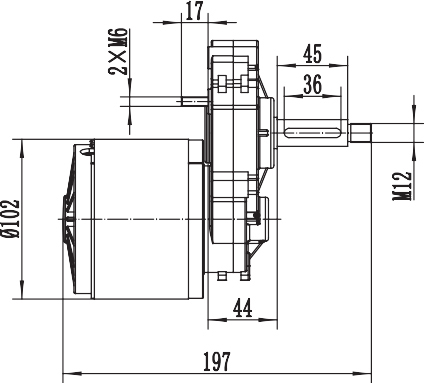

Length (mm) 197 197

Note: customized permanent magnet DC brushed drive motor is available upon your requirements and working conditions.
