60-100W Drive Motor, PMDC Brushless Motor GF043AH
60-100W Drive Motor, PMDC Brushless Motor GF043AH
60-100W Drive Motor, PMDC Brushless Motor GF043AH
Technical Specifications
Rated Power (W) 60 100 60 100
Max. Power (W) 100 150 100 150
Rated Voltage(V) 24 24 24 24
No-load Current(A) ≤1.0 ≤1.2 ≤1.0 ≤1.2
No-load Revolution (RPM) 1400±5% 1700±5% 1400±5% 1700±5%
Rated Torque (N•m) 0.5 0.5 0.5 0.5
Max. Torque (N•m) ≥1.8 ≥1.8 ≥1.8 ≥1.8
Rated Revolution (RPM) 1200±5% 1500±5% 1200±5% 1500±5%
Rated Current(A) ≤4.0 ≤6.0 ≤4.0 ≤6.0
Rated Efficiency (%) ≥66 ≥72 ≥66 ≥72
Working Cycle (min.) S2-60 S2-60 S2-60 S2-60
Insulation Class E E E E
Protection Level IP33 IP33 IP33 IP33

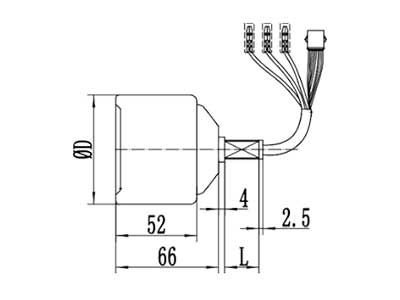

Out-Shaft Length (L/mm) 22/37 22/37 22/37 22/37
Outer Diameter (D/mm) 70 70 75 75
Tire Replacement No No Yes Yes

Note: we can customize any brushless DC drive motors according to your application requirements and working conditions.
