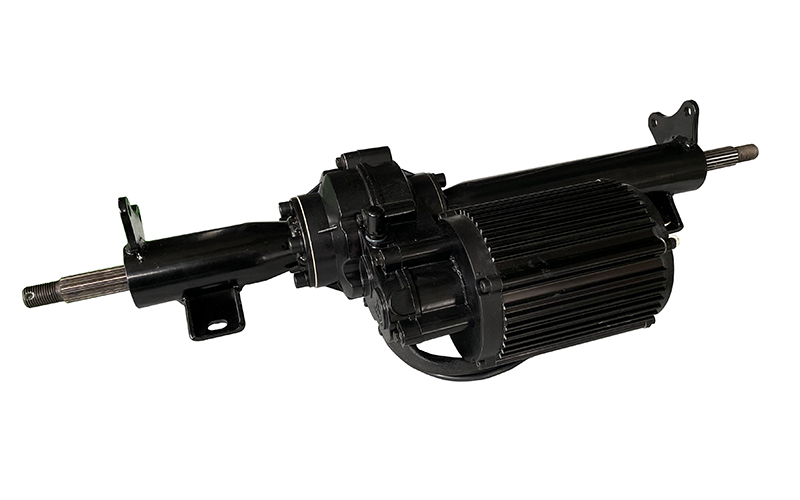

Rear Drive Axle Assembly HQ10 Series

Rear Drive Transaxle System

Rear Drive Axle Assembly HQ10 Series
Rear Drive Axle Assembly HQ10 Series
Rear Drive Axle Assembly HQ10 Series
Features

The rear drive axle assembly is characterized by high loading capacity, compact and portable design, and excellent performance. The axle assembly is applicable to all kinds of small three-wheel and four-wheel electric vehicles, such as electric ATV for kids, electric go kart for kids.

Inquiry
Technical Specifications
Model No. HQ10

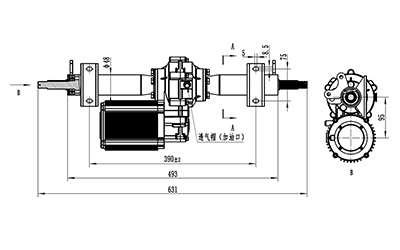

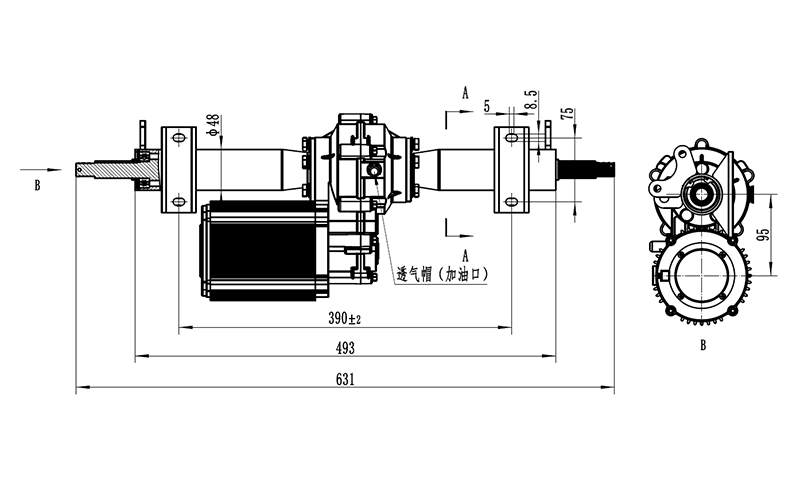

L1 Size (mm) 493
L2 Size (mm) 390
Braking Mode Disc Brake
Braking Diameter (mm) Disc:120/130
Structure Type Split; Half-floating
Matched Reducer Model JS10
Gear Ratio 10:1
Matched BLDC Motor TF102AH
Rated Voltage (V) 36V/48V
Rated Power (W) 500W/750W
Rated Torque (N.m) 1.7/3.5
Rated Current (A) 18/28
No-load Current (A) ≤3 / ≤3.5
No-load Revolution (RPM) 3800/3100
Rated Revolution (RPM) 3500/2700
Max. Torque (N.m) 10/13
Max. Output Power (W) 1000W/1500W
Rated Efficiency (%) ≥75
Working Cycle (min.) S1
Insulation Class E
Protection Level IP55
Remark The size of L1 and L2 can be customized per your special requirements.
