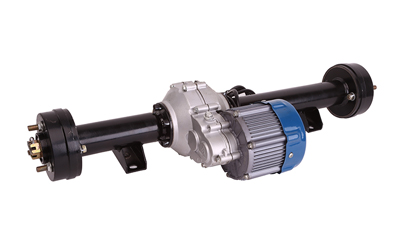

Rear Drive Axle Assembly HQ12 Series
Rear Drive Axle Assembly HQ12 Series
( Mechanical Drum Brake Type)
Rear Drive Axle Assembly HQ12 Series
( Disc Brake Type)

The rear drive axle assembly has an excellent performance, with strong loading and braking capacities. Equipped with the drive axle assembly, vehicles will be steered more smoothly and the value of your spending will be maximized. This rear drive axle assembly is suitable for all kinds of motor-driven vehicles and equipment.

Inquiry
Technical Specifications
Model No. HQ12

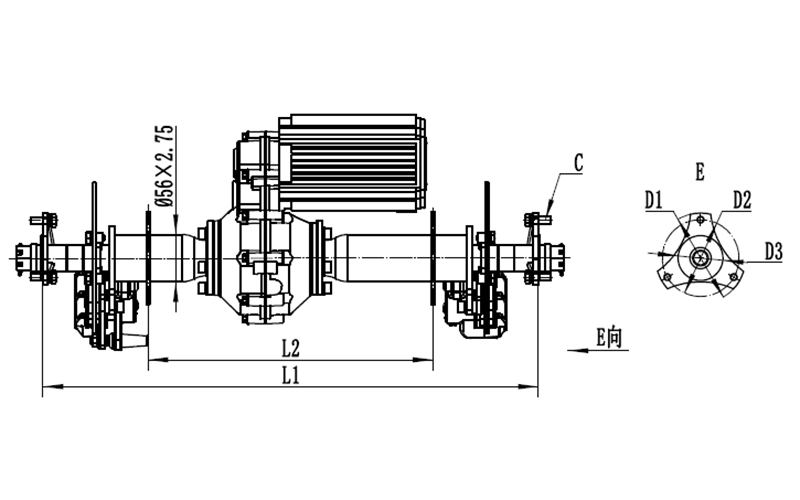

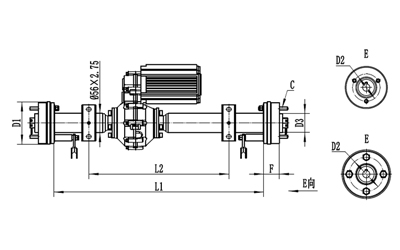

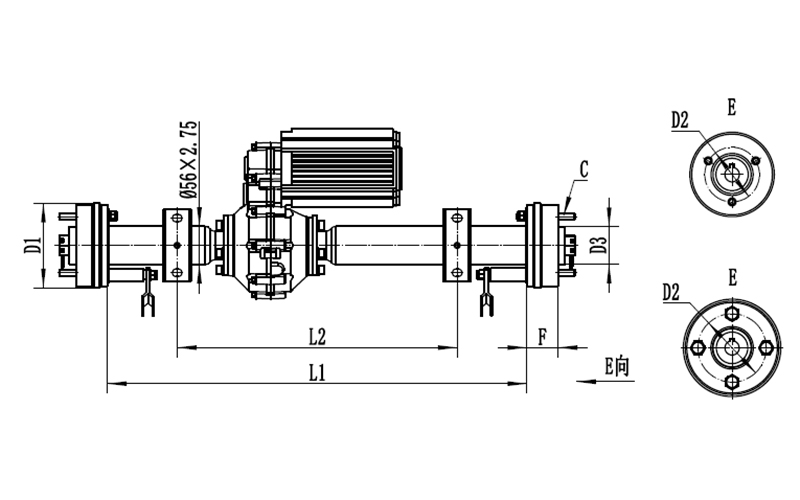

L1 Size (mm) 590/610/730/840/900
L2 Size (mm) 340/410/530/640/700
Braking Mode Mechanical Drum Brake/Disc Brake
Braking Diameter (mm) Drum:110/130/160; Disc:160/180
Structure Type Split; Half-floating
Matched Reducer Model JS12
Gear Ratio 10:1; 22:1
Rated Output Torque (N.m) 200
Max. Output Torque (N.m) 300
Matched BLDC Motor TF120AH
Rated Voltage (V) 24/36/48/60/72
Rated Power (W) 350/500/650/750
Rated Torque (N.m) 1.2/1.7/2.2/2.6
Rated Current (A) 19/14/18/21
No-load Current (A) ≤2.5 / ≤3 / ≤3.5 / ≤4
No-load Revolution (RPM) 3250/3150/3150/3050
Rated Revolution (RPM) 2900/2800/2800/2700
Max. Torque (N.m) 6.5/10/13/18
Max. Output Power (W) 700/1000/1300/1500
Rated Efficiency (%) ≥75
Working Cycle (min.) S1
Insulation Class E
Protection Level IP33
Remark The size of L1 and L2 can be customized based on your special requirements.
